Hi all!

This time we have for you a review of the new TOX4 Player Android 13 TV box from TrustOnX, A company’s which products I have yet to review till now, but seems like a solid manufacturer as the review will come to show.

I would like to thank Zhang for the review sample of this new TV Box.

TOX4 is a TV box based on RockChip 3528 chipset which offers great and stable video performance but No support for AV1 codec. It does most video related tasks surprisingly well (for a less known brand), but it falls quite short when it comes to gaming, as well as issues running some benchmarks.



What’s in the Box?


TOX4 comes in a matte small and vented black plastic box, with the logo on top, and a blue LED indicator and IR transceiver. It is made of perforated matte black plastic, but feels small, sturdy and very light at 90 grams.

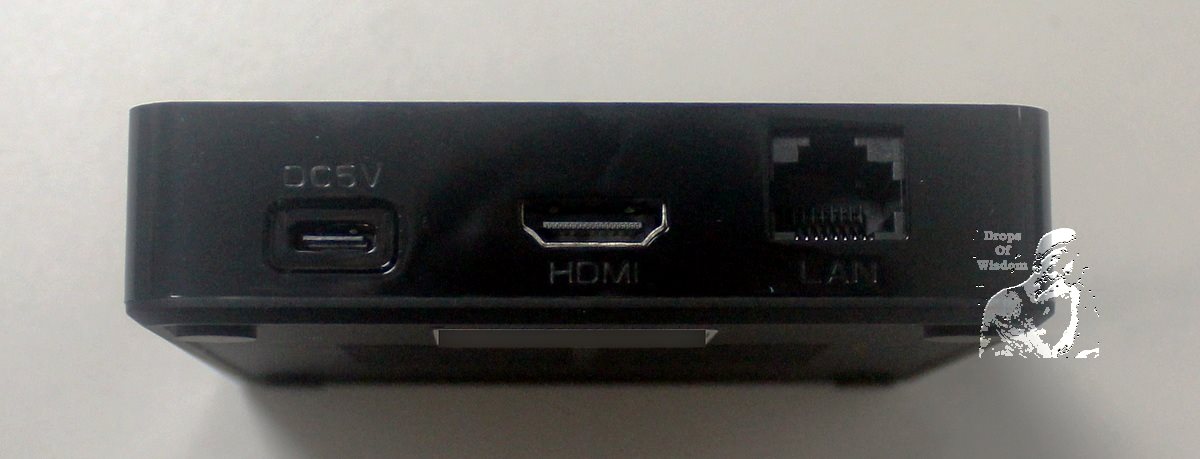

TOX4 Looks

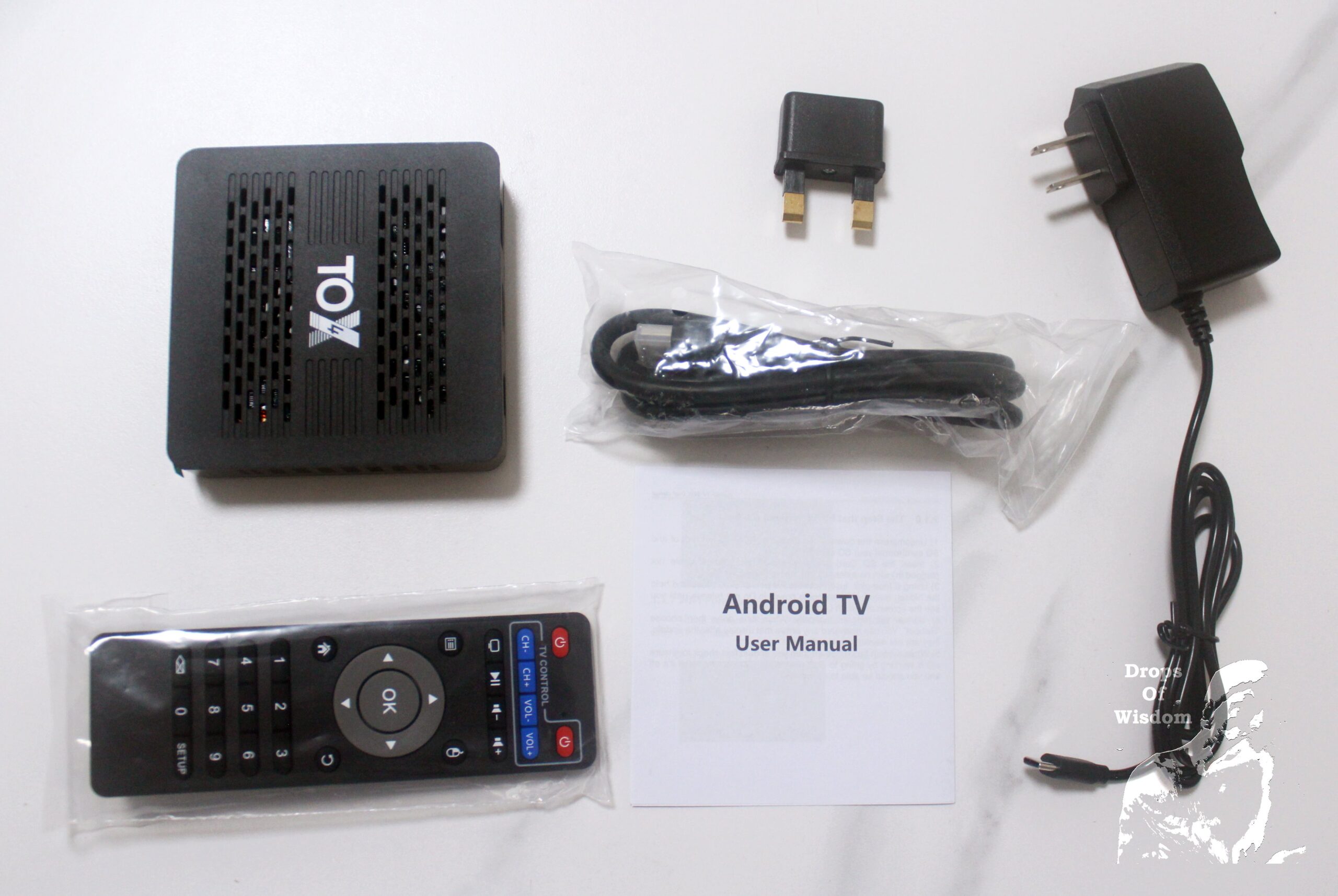

Here are the items that come in the box: TOX4 TV Box, 1 * IR Remote, 1 * HDMI Cable, 1 * User Manual, 1 * User Guide, 1 * Power Adapter, 1 * Detachable Antenna:

trustonx,tox4,android,rockchip,3528,13,tv box,review,ultrahd,uhd,4k,8k,kodi,tv,iptv,,items
Tox4 – What’s in the box



TOX4 Specifications


Operation System Android 13
Language English, Chinese …Multi-Language support
CPU Rockchip RK3528,Quad core ARM Cortex-A53
GPU ARM Mali 450 MP2,OpenGL ES1.1 and 2.0,OpenVG1.1
SDRAM DDR3 4GB
Storage Capacity (Flash) 32GB (eMMC)
WIFI 2.4G+5G The wireless module complies with IEEE 802.11 a/b/g/n/ac with multi-user MIMO Technology
WIFI Module BL-M8822CS1-S
Bluetooth Bluetooth 5
The Extended Storage TF Card, up to 32GB (SD2.X,SD3.X,SD4.X, eMMC ver5.0)
Power Supply DC 5V/2A via USB Type C
HDR Supports
HDMI Output HDMI(1.4 and 2.0 ) to support maximum 4K@60fps output(HDCP2.2)
1*USB 3.0, 1*USB 2.0 Host
Led Work Light Support
Network 1*RJ45 1000M (1000M Ethernet interface)
Remote Control Remote controller
Dimensions 96mm*96mm*23cm
Net Weight 90 grams
Gift box Dimensions 155mm*100mm*85mm



TOX4 Benchmarks and Testing


*All completed benchmarks have been repeated 3 times and results have been averaged to give a more accurate reading (aside for PCMark):

Antutu Benchmark


trustonx,tox4,android,rockchip,3528,13,tv box,review,ultrahd,uhd,4k,8k,kodi,tv,iptv,,antutu,benchmark trustonx,tox4,android,rockchip,3528,13,tv box,review,ultrahd,uhd,4k,8k,kodi,tv,iptv,,antutu,benchmark

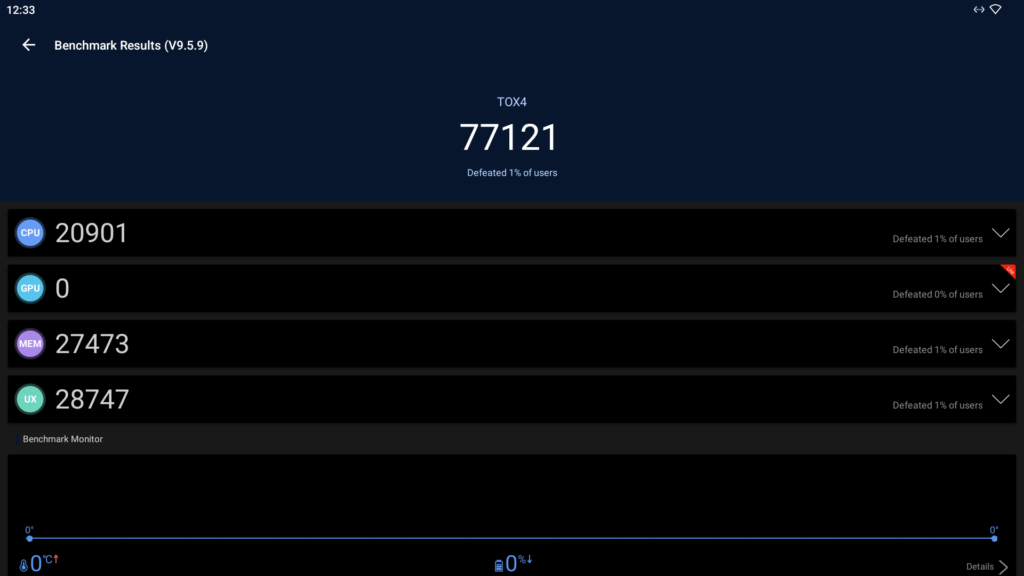

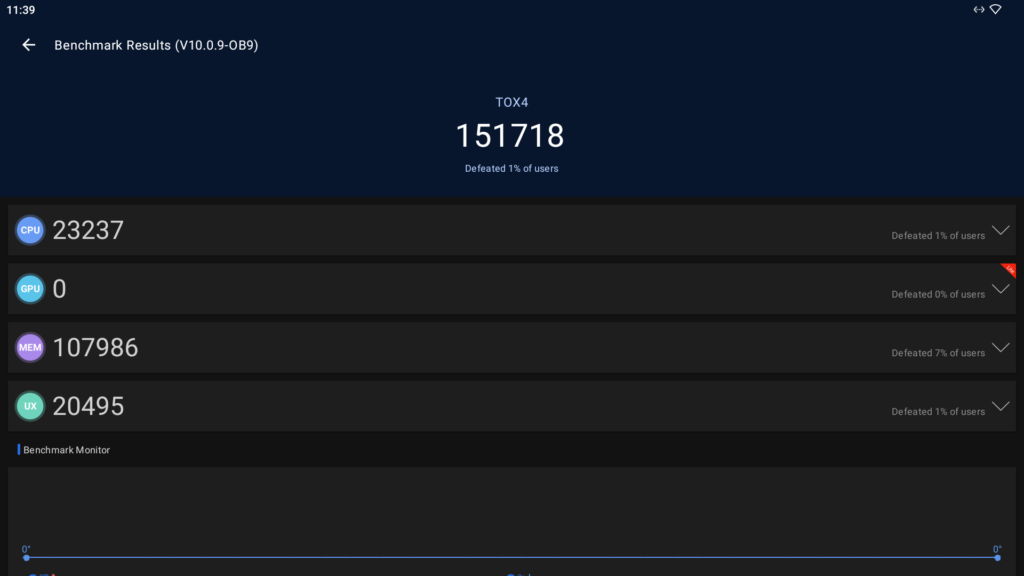

The Antutu benchmark tests single core performance over multi-core as it is a better indication of the performance of one device over others in most situations. Sadly, TOX4 was unable to run the GPU portion of the benchmark.. as can be seen in these screenshots from Antutu 9 and Antutu 10.

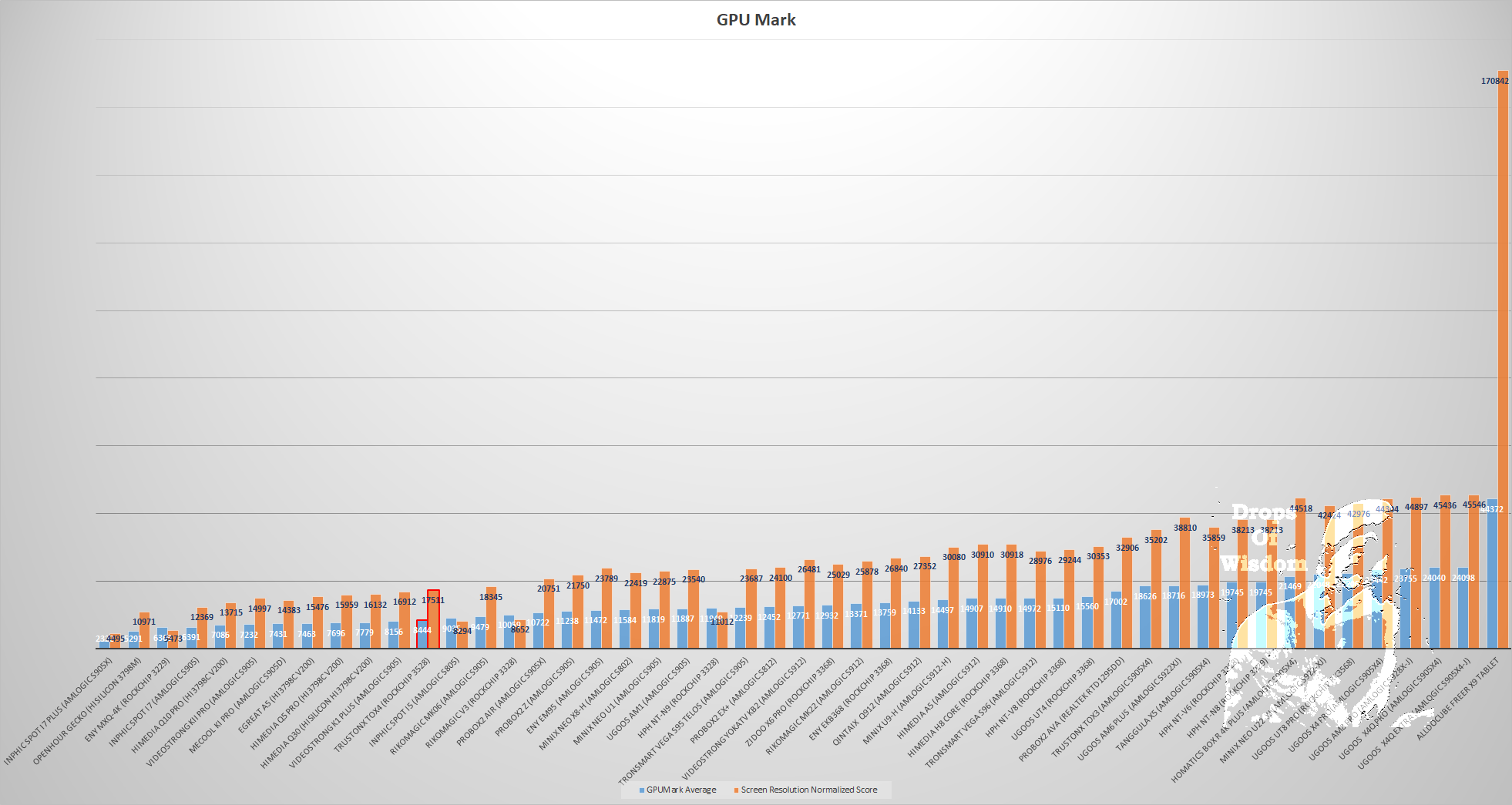

GPU Mark Benchmark


GPU Mark tests 3d gaming performance and also provides a normalized score according to the used screen resolution (for a more accurate result). The test is quite short and should be taken as a supporting result to that of the more serious 3D Mark benchmark (in this case, there is no 3d Mark results).

TOX4 takes one of the last places in average and normalized score, as well as in Average FPS. That is quite disappointing, but it seems that TOX4 is meant to be mostly (or only) used as a video playback device.





A1 SD Benchmark


A1 SD Benchmark tests RAM and flash memory speeds. As can be seen in the provided graphs, RAM is much faster (by a factor of about 40) than flash memory – that is why it’s in smaller amount and is also volatile (does not keep its contents after a reboot).

TOX4 RAM copy speed is placed quite near the top, showing off the fast RAM used in TOX4, and the Internal storage also shows both fast storage and good performance on that front. However, I was unable to “see” any SD card inserted  into the TOX4 in this benchmark, and so I could not test read/write speeds for external storage. 32GB was not read at all even outside the benchmark. 16GB was read and partially functioned (had some permissions issues) outside the benchmark app, but not inside it.

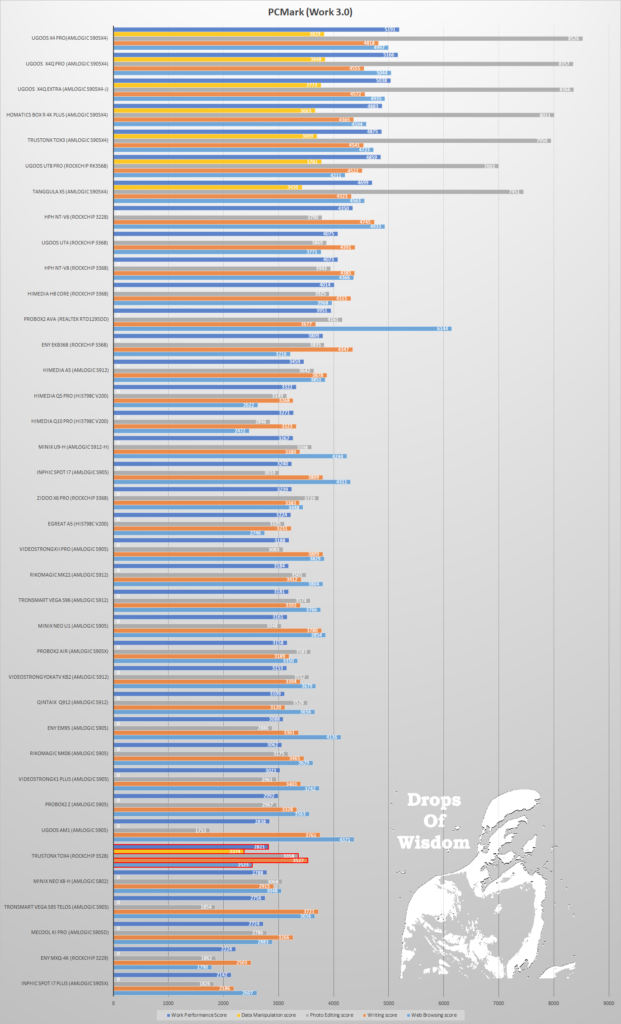

PC Mark Benchmark


trustonx,tox4,android,rockchip,3528,13,tv box,review,ultrahd,uhd,4k,8k,kodi,tv,iptv,,pcmark,benchmark

An extensive suite of productivity tests which is designed to show a more balanced picture of an android device’s ability to perform various tasks such as spreadsheet calculations, photo editing, complex web page browsing and more.

TOX4 sadly takes one of the last places on the test. Again proving that this box is not meant as a productive tool, but more for video playback and streaming.



3D Mark Benchmark


trustonx,tox4,android,rockchip,3528,13,tv box,review,ultrahd,uhd,4k,8k,kodi,tv,iptv,,3dmark,benchmark

3D Mark benchmark is considered as one of the best ways to test 3d performance on Android (and other platforms).

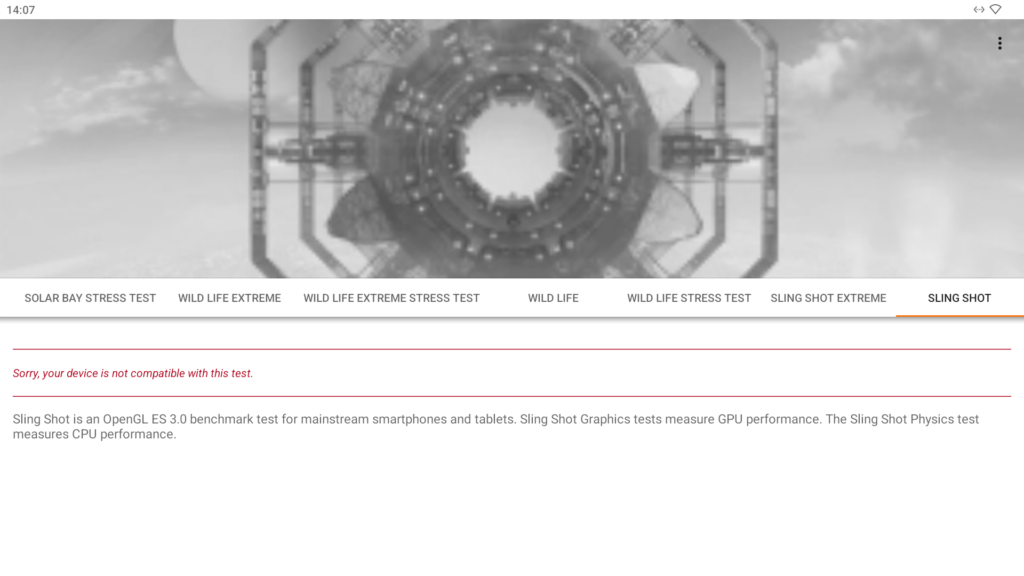

TOX4 was unable to download the various tests as it claimed that the box is missing the hardware required to run them…

TOX4 Extra Benchmarks

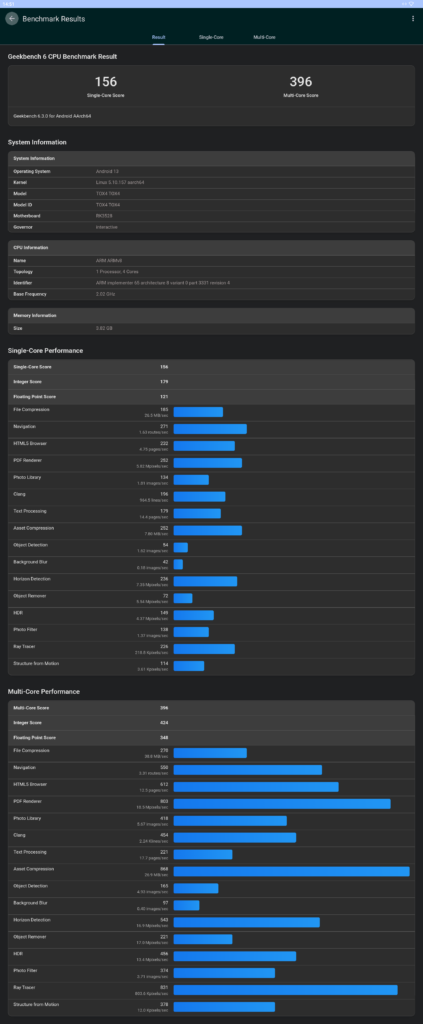

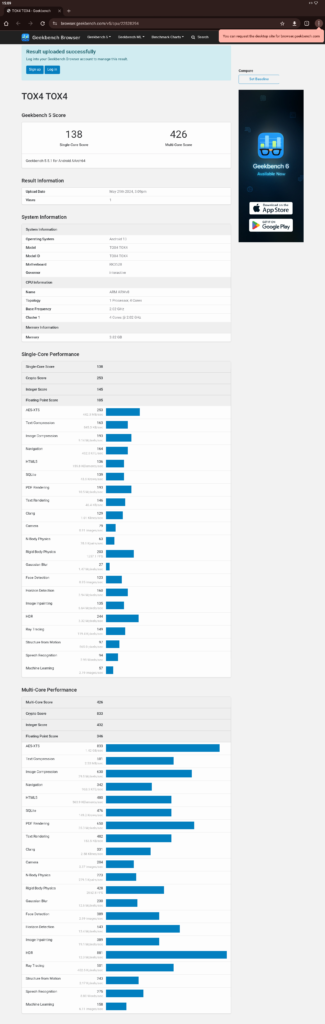

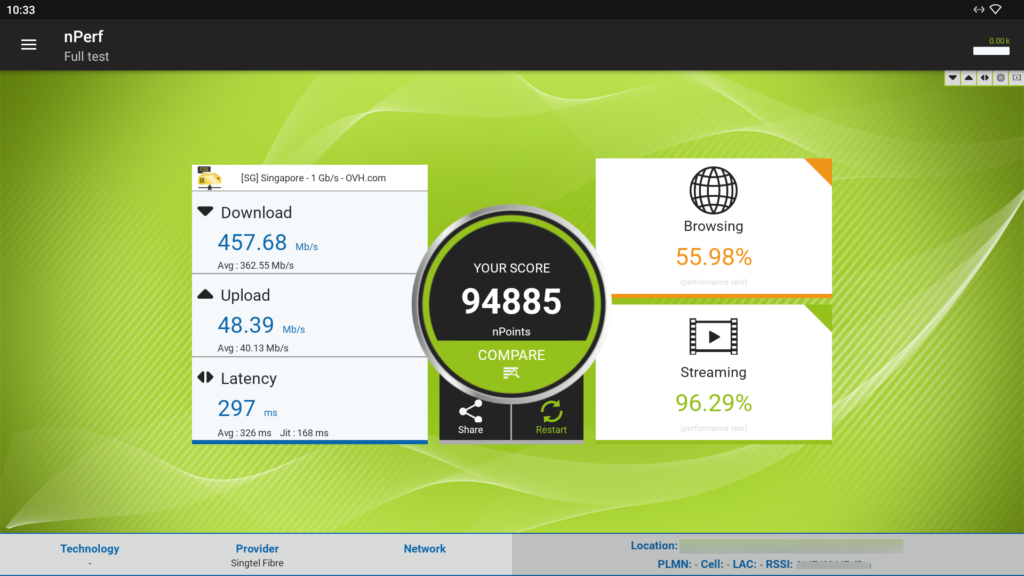

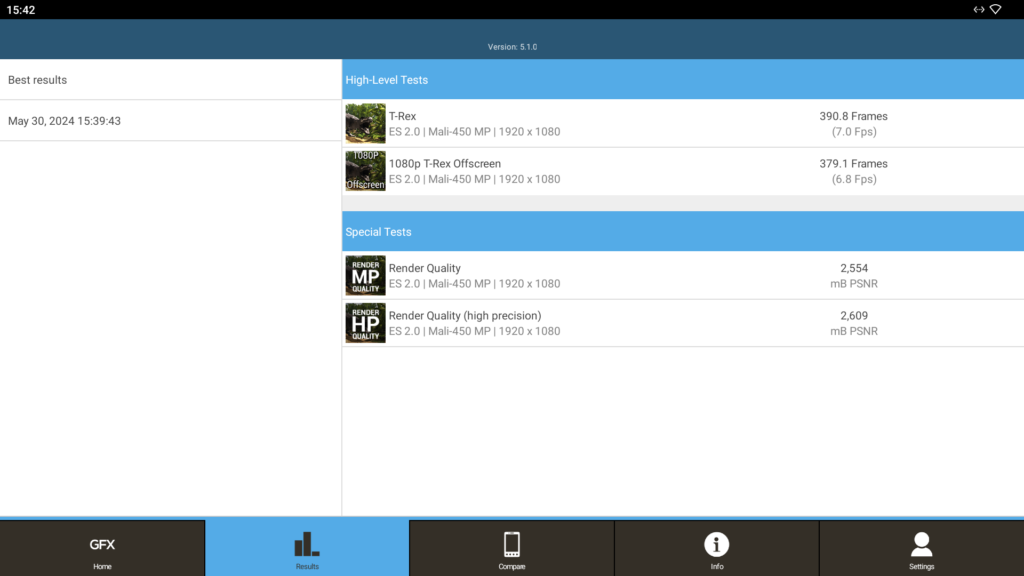

For some more information, see the following screenshots from other benchmarks such as Geekbench 5, Geekbench 6, nPerf, and GFXBench:

trustonx,tox4,android,rockchip,3528,13,tv box,review,ultrahd,uhd,4k,8k,kodi,tv,iptv,,Geekbench,5,benchmark

trustonx,tox4,android,rockchip,3528,13,tv box,review,ultrahd,uhd,4k,8k,kodi,tv,iptv,,geekbench,6,benchmark

trustonx,tox4,android,rockchip,3528,13,tv box,review,ultrahd,uhd,4k,8k,kodi,tv,iptv,,nperf,benchmark

trustonx,tox4,android,rockchip,3528,13,tv box,review,ultrahd,uhd,4k,8k,kodi,tv,iptv,,gfxbench,benchmark

TOX4 Bugs and Issues


  1.  Angry Birds 2 seems to exhibit a similar bug as it does in some other new android TV boxes, and gets stuck after the first level is passed.
  2.  8K video is not playable on the TOX4. At all. Buffering and stutter is all you will get.
  3.  AV1 videos only play properly on the included movie player application. Kodi simply cannot handle them.
  4. Kodi is having trouble switching resolution correctly per video played. So, in order to play 4k/8k, Kodi native interface resolution must be set to 4k.
  5.  Updates worked fine at first from the built-in OTA software update component. However, the last update attempt has resulted in an update error (at 99%) and could not complete successfully, even after a full box reset. I had to use a manual method to burn the new firmware.

TOX4 Root Function

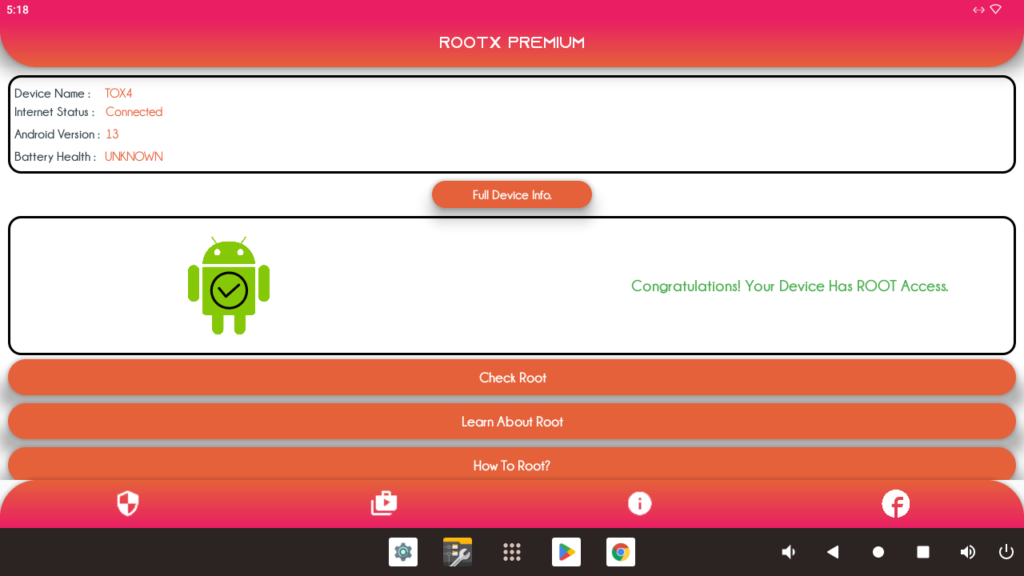

The TOX4 box comes with a built-in (Magisk based) root function which works like a charm.

  • Please note that all benchmarking and testing was done before rooting the box, in order to prevent any possible instabilities.

trustonx,tox4,android,rockchip,3528,13,tv box,review,ultrahd,uhd,4k,8k,kodi,tv,iptv,rootx,premium,magisk,root

TOX4 Video Playback testing (using Kodi)


TOX4 Performs quite well in terms of video, although it is not really intended for Kodi playback (In Kodi there is a audio-video sync issue which is not addressed).

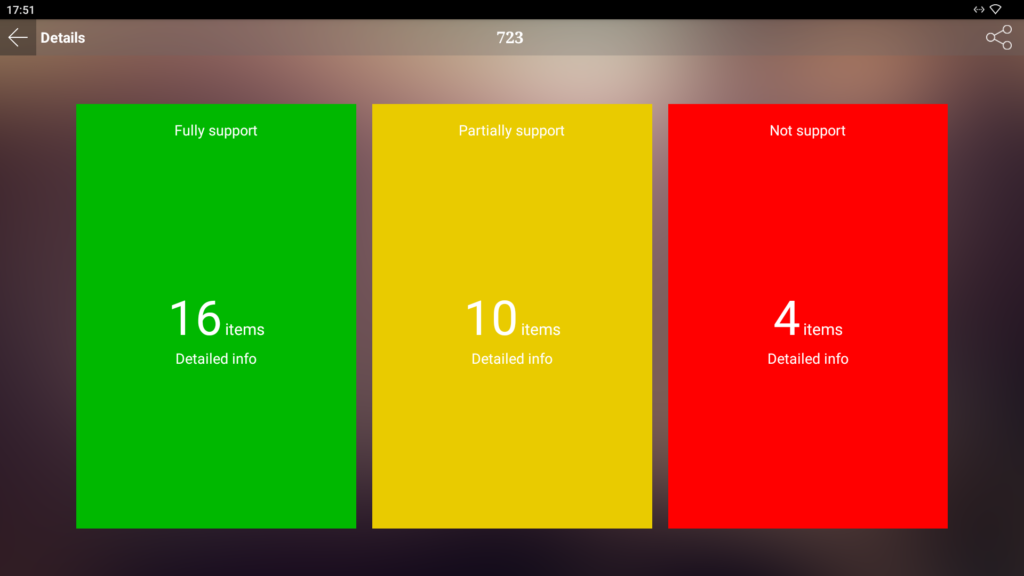

Antutu Video shows that the X5 box handles most video formats well.

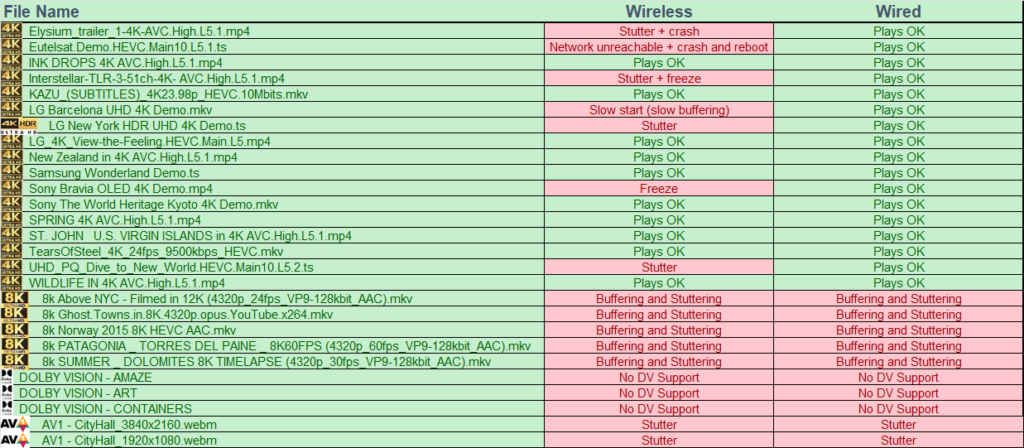

As can be witnessed from the results of the video trailers playback testing below, the X5 does not perform as well when using Wi-Fi over local network as it does through wired connection (even though network speedtest shows good results):

trustonx,tox4,android,rockchip,3528,13,tv box,review,ultrahd,uhd,4k,8k,kodi,tv,iptv,video, tests

trustonx,tox4,android,rockchip,3528,13,tv box,review,ultrahd,uhd,4k,8k,kodi,tv,iptv,antutu,video,benchmark

TOX4 Network Performance

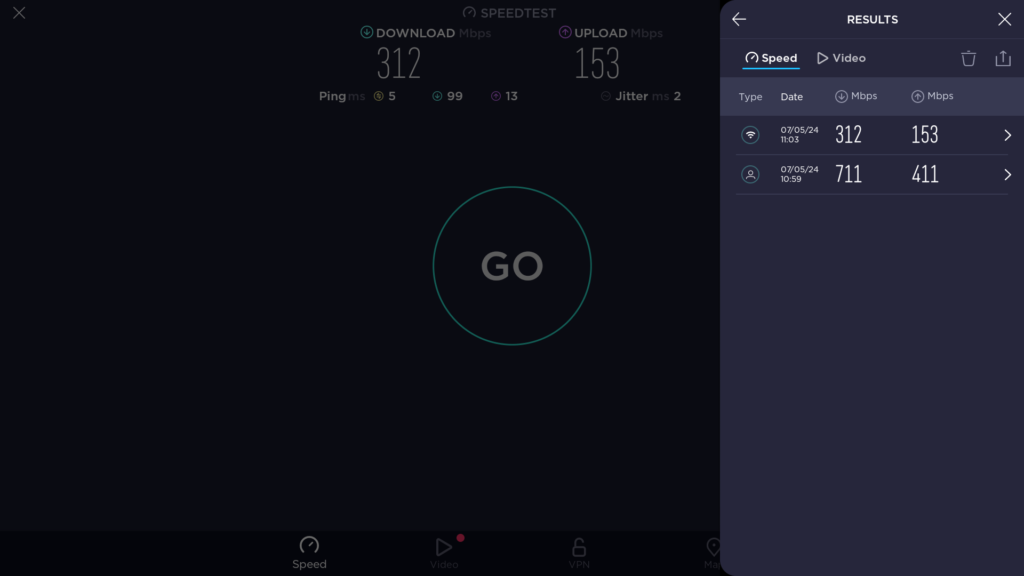

I tested the network performance using the popular Speedtest.net application from the play store. I tested both Wi-Fi (the fastest Wi-Fi supported – in this case 5GHz 802.11ac), and wired network connection. My home connection is a symmetric 1GBit Fiber connection so it would not limit the testing. As can be seen, the TOX4 box performs well, with Wired LAN download speed reaching about 70% of top download speeds, and 5GHz Wi-Fi doing okay (for the limits of its standard). It is worth mentioning that unlike it’s older brother (TOX3), there is no Wi-Fi Antenna included:

trustonx,tox4,android,rockchip,3528,13,tv box,review,ultrahd,uhd,4k,8k,kodi,tv,iptv,speedtest,ookla,wireless,wired



TOX4 Gaming Performance


Asphalt 9 Legends – a 3d graphic intensive racing game. On TOX4, Graphics are slightly choppy at times, but the real issue is that this game cannot be run by the supplied remote, or even an air mouse with a keyboard. So it’s pretty unusable in terms of navigation (hence generally unusable)

review,ut8,pro,tv box,android,11,ultrahd,rockchip,RK3568,asphalt,9,legends,game



Angry Birds 2 – a popular 2d action game. See mention in the bug list for TOX4. The game is unplayable once you pass the first level. Till then it runs smoothly.

review,ut8,pro,tv box,android,11,ultrahd,rockchip,RK3568,angry birds 2,game



Walking War Robots – an online robot warfare game that requires a game-pad (I don’t have a game-pad). runs fine (not smoothly though), and able to control with air mouse.

review,ut8,pro,tv box,android,11,ultrahd,rockchip,RK3568,war robots,game



TOX4 Conclusions


Did I like it? Not so much. It is stable and performs more than reasonably with Kodi, but I did notice some artifacts during video playback, even after the latest firmware update.

Would I recommend it? Only if you are looking for video only, up to 4k, on a really tight budget.

You like it! Where can you buy it? For 35.22 USD in AliExpress
